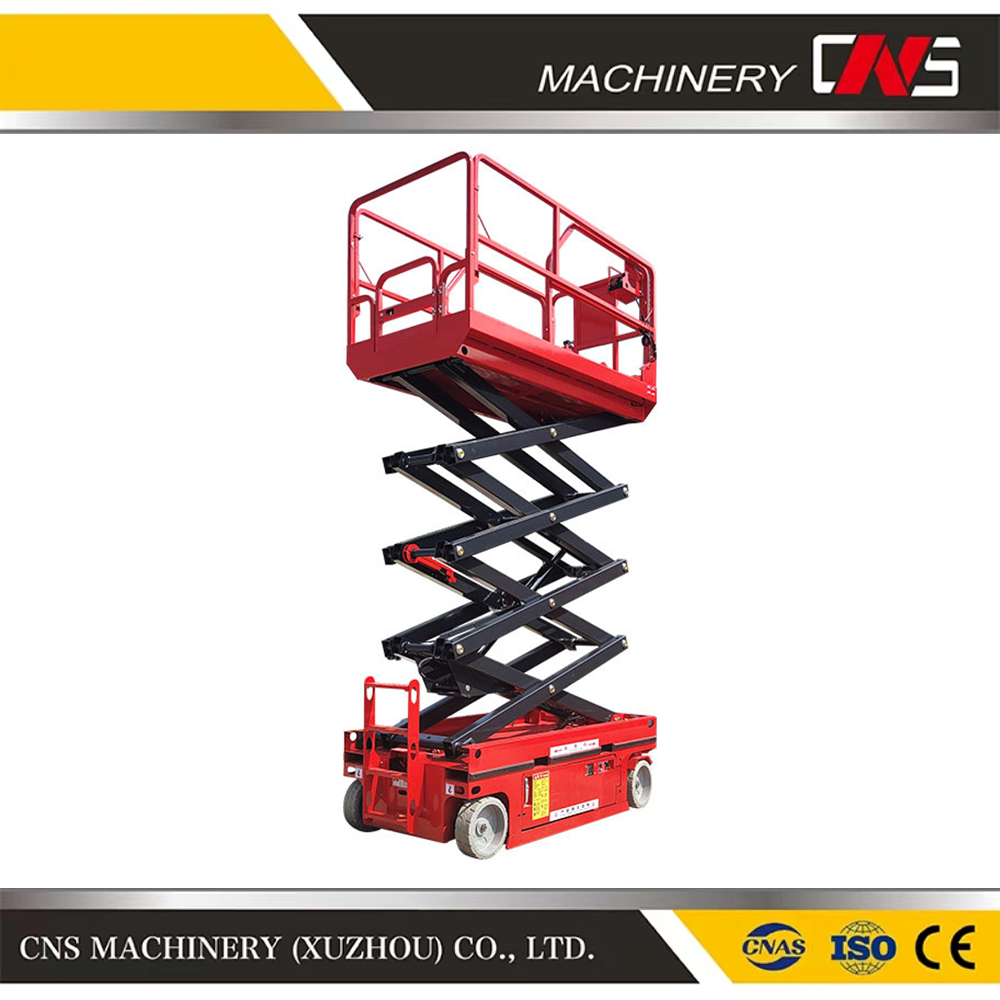

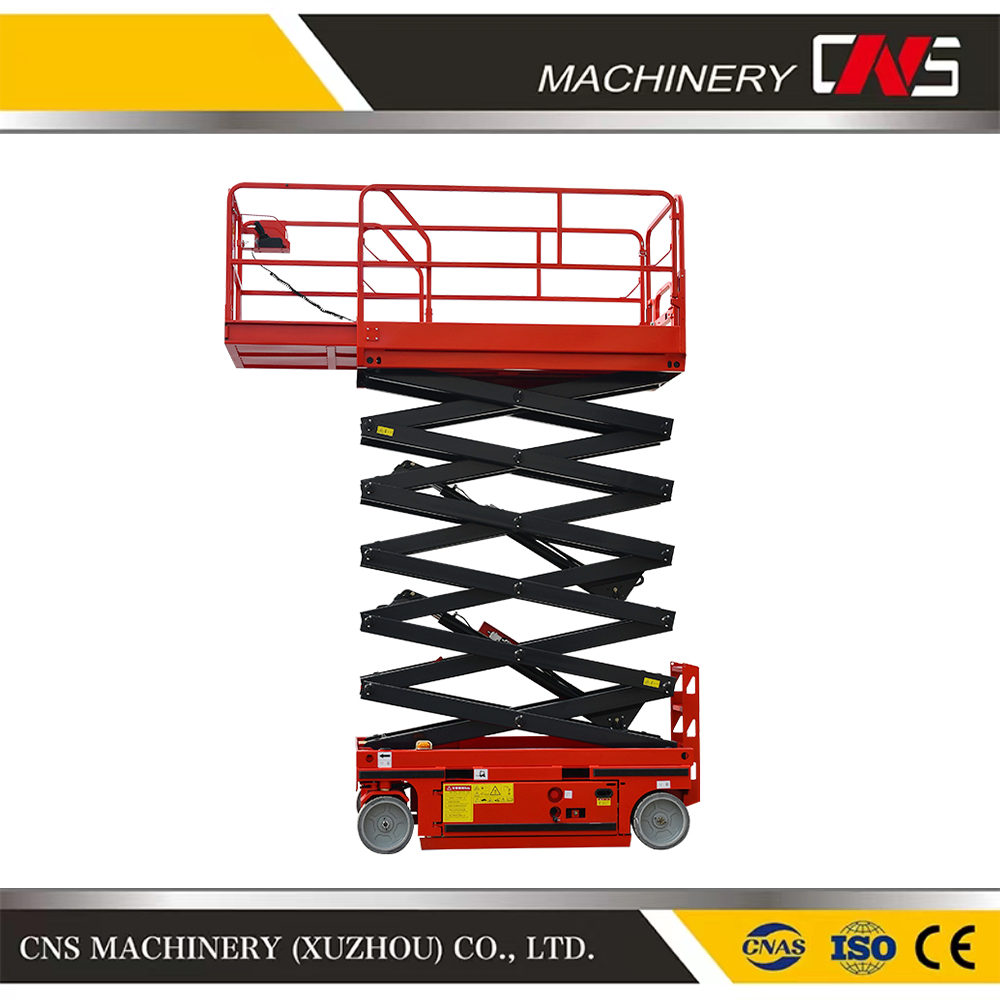

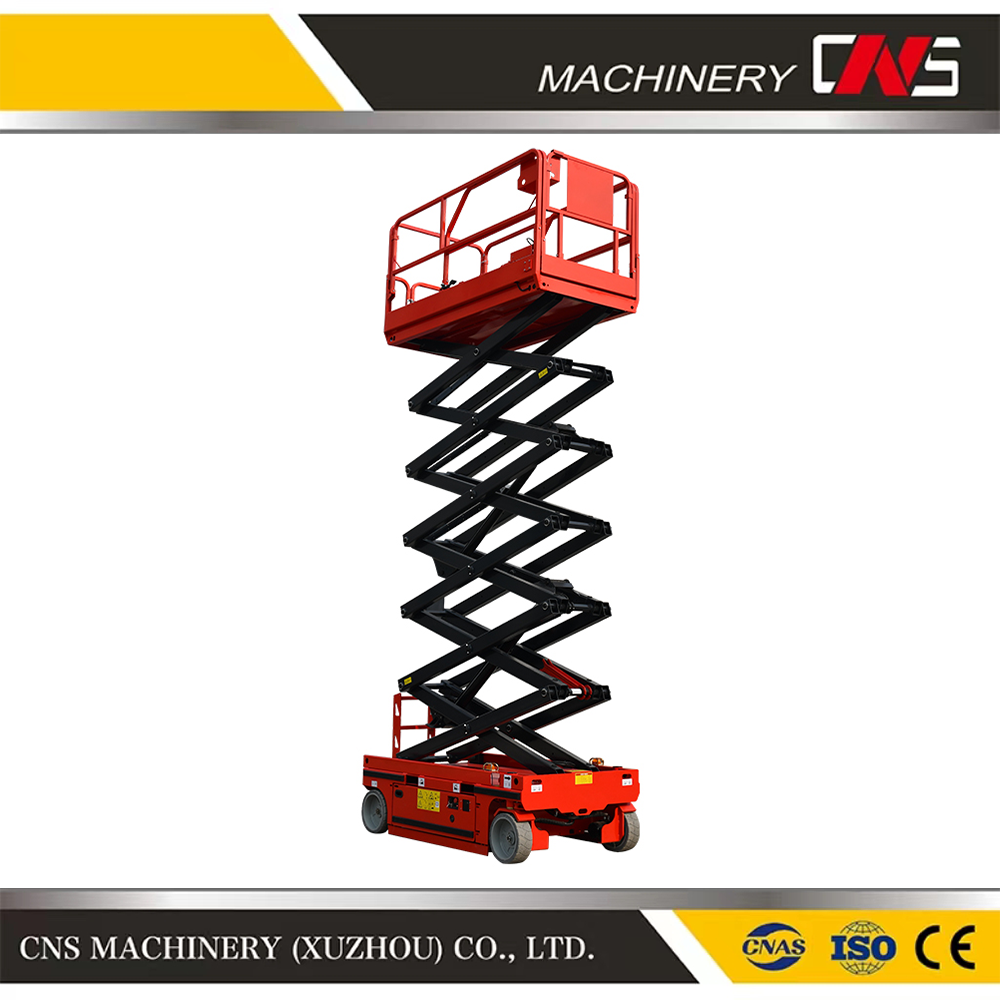

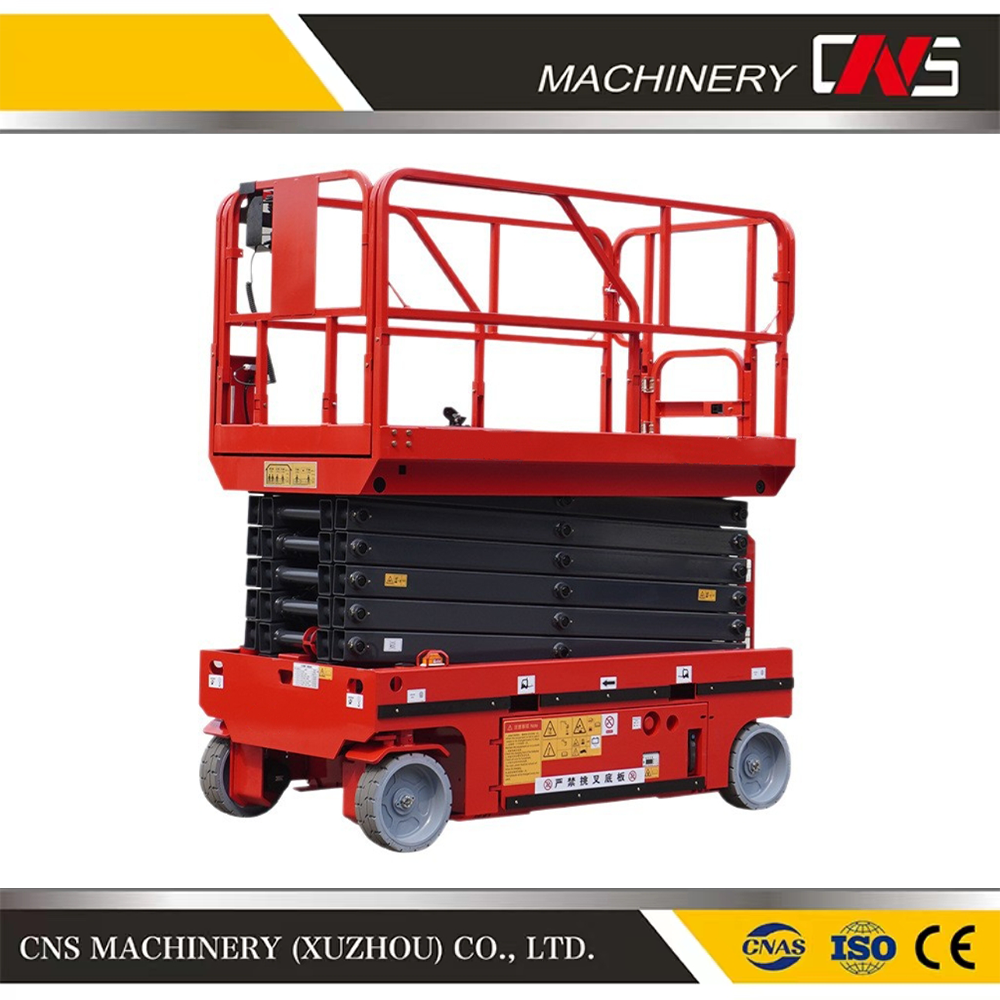

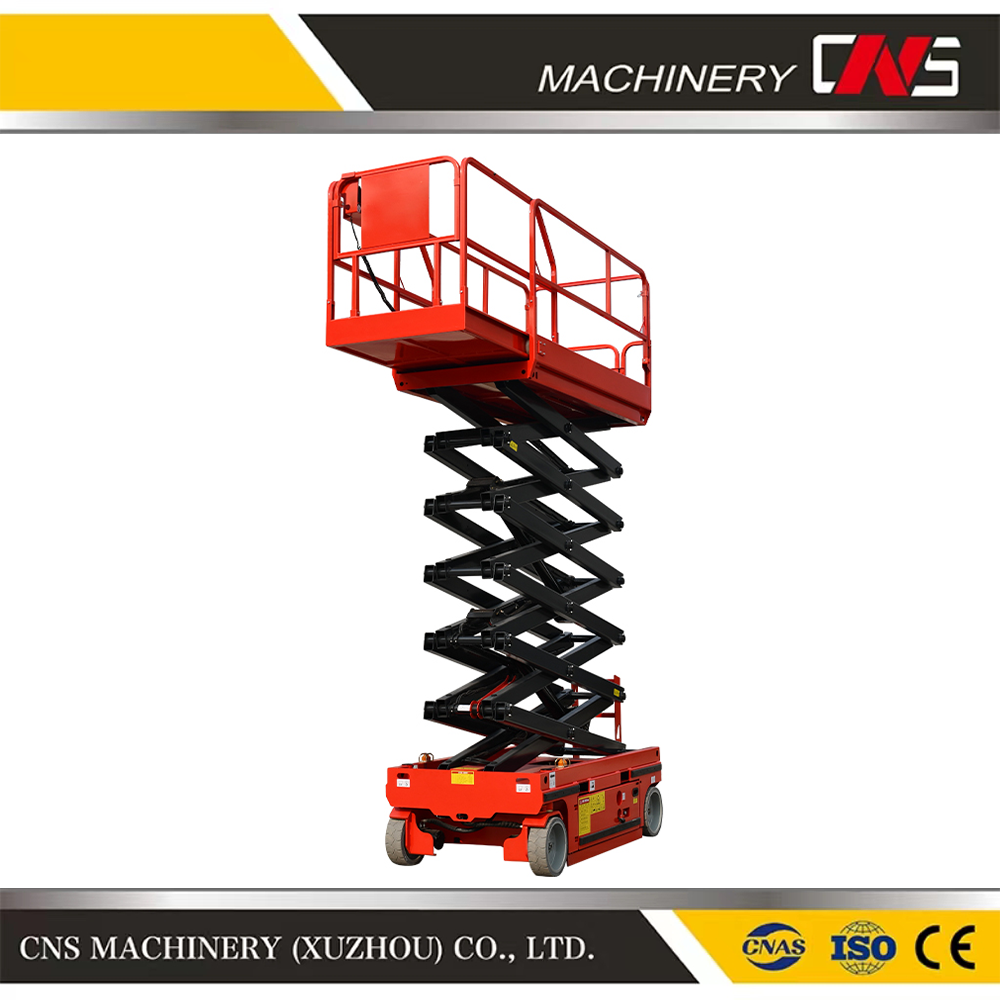

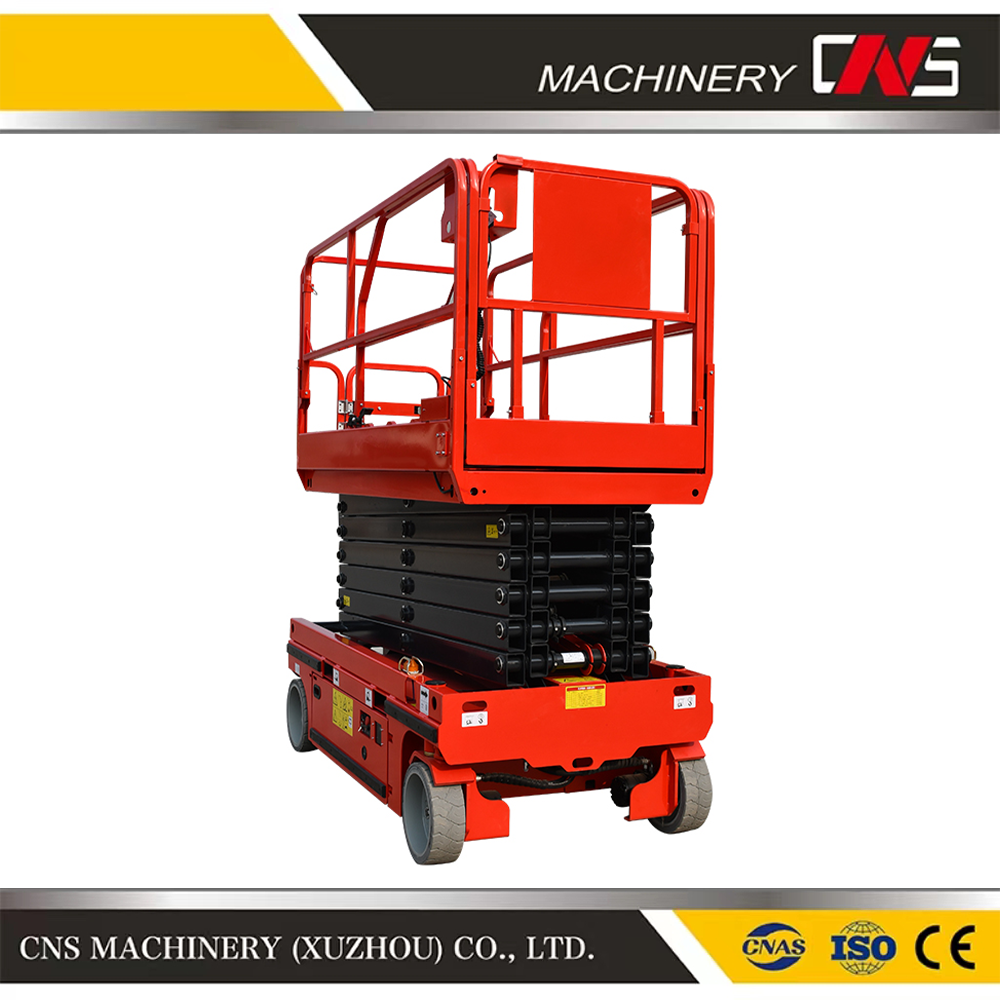

Name: High Quality 12m~20m Self Propelled Aerial Work Platform Hydraulic Electric Scissor Lift with CE Certification
Brand: CNS Machinery
SKU: 00705
Availability: InStock
Rating: 5 (1 reviews)

Description

CNS MachineryYour repliable supplier and partner!

CNS Machinery (Xuzhou) Co., Ltd., located in Xuzhou, CNS Machinery possesses a well-established foreign trade team and technical team, mainly engaged in the production and sales of aerial platform. Established in 2006, our facility covers an area of 60,000 square meters and employs more than 210 professionals. CNS adheres to a rigorous inspection system with "quality assurance" as its fundamental principle. Equipped with advanced machinery, exceptional quality standards, stringent management practices, and proficient technical teams, we ensure the superiority of our products while holding IS09001 quality system certification.

Model	X10L	X12L	X14L
Max.working height	11.8m	13.8m	15.8m
Max.Platform height	9.8m	11.8m	13.8m
Working platform Length	2.27m	2.27m	2.7m
Working plaform width	1.12m	1.12m	1.11m
Complete Machine Length	2.43m	2.43m	2.85m
Overallwidth	1.21m	1.21m	1.31m
Overall height(fence not folded)	2.47m	2.6m	2.6m
Overall height (fence fold)	1.93m	2.06m	2.06m
Platform extension size	0.9m	0.9m	0.9m
Wheelbase	1.87m	1.87m	2.24m
Ground clearance (retracted/extended)	0.11m/0.02m	0.11m/0.02m	0.12m/0.02m

High Quality Articulating Boom Aerial Work Platform Manlift Electric Scissor Lifter Towable Boom Lift with CE Certification

Product highlights:
[1] Automatic braking system
Protective during the entire climbing and descending process. In case of power failure or other faults, the brake function can be manually released to protect the mobile safety.
[2] Emergency descent system
If the equipment cannot be lowered due to external reasons, pull the emergency descent valve to safely descend.
[3] Emergency stop button
When pressed, the equipment will shut down and all operations will stop, protecting the equipment and personal safety.
[4] Fault diagnosis system
Digital fault codes are automatically displayed for quick and easy maintenance.
[5] Tilt protection system
When the equipment tilts beyond the safe angle, it will automatically enter the protection system and can only be lowered. It can only be used normally after reaching a safe state.
[6] Pipeline explosion-proof valve + steel mesh high-pressure oil pipe
Effectively enhance the safety of the oil circuit and ensure the smooth operation of the equipment.
[7] Pothole protection system
If the equipment encounters a pothole and tilts during operation, the protection system will keep the equipment stable and the power will be cut off immediately to protect the equipment and personnel.
[8] Charging protection system
When the battery is fully charged, the equipment will automatically stop charging to prevent overcharging and damage to the battery, thus extending the battery life.

Are you a manufacturer?

Yes! We are the manufacturer established in 2006 and started selling overseas in 2015.
Offer OEM/ODM service of aerial work platforms.
Why choose CNS?
Source factory! Save your price margin to higher quality and machining precision!
12 months warrranty!
Strong R&D team!
Flexible payment term. L/C is highly welcomed.
Cooperated shipping agent, saving more cost.
What is the way for delivery?
Mainly by shipment.
Optional railway for neighborhood countries.
DHL, TNT, UPS,or FedEx for light accessories which are needed urgently.
What are your warranty terms?
12 months or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage which are not caused by CNS.
What is your lead time?
We expanded and rebuilt factory to another 60000sqm to meet higher demand.
Stock order: 3-5 working days,
customized orders within 1-2 weeks.
Contact CNS service team to get an accurate lead time.
